Farms & AgricultureFertilizer Solutions System
ReliableFertilizer Solutions
Introducing our dependable Fertilizer Lines, the ultimate solution for a health soil.
Introducing our advanced Farms & Agriculture Fertilizer Solutions, designed to revolutionize the way you manage soil health in your farming operations.
Fertilizers provide crops with nutrients like potassium, phosphorus, and nitrogen, which allow crops to grow bigger, faster, and to produce more food.
Introducing our dependable Fertilizer Lines, the ultimate solution for a health soil.
A water-driven proportioning injector, no outside power supply needed. Units include a wall mounting bracket, suction tube connectors, 7′ of 3/8″ pick-up/suction tubing with foot valve strainer, and a replacement lip seal kit.
Specs:
Pressure range: 2.9-120psi
Induction ratio: 1:111-1:1000, 1:50-1:500, 1.25-1:250
Type Proportioning dosing injector
Working pressure (psi) 3 – 116
Flow rate (gph) 5 – 6600
Proportioning range (%) 0.1% – 5%
Mazzei injectors are high efficiency, Venturitype, differential pressure injectors. A pressure difference between the inlet and the outlet of the injector creates a vacuum inside the body, which results in suction through the suction port. The suction can then be used to inject and mix fertilizers and water treatment chemicals into the water.
Mazzei injectors are trouble-free because there are no moving parts, and long life because they are molded from chemical resistant polypropylene.
Sizes: 3/4”, 1”, 11 /2”, 2”, 3”, 4” injectors
Materials PP / PVDF
Working pressure (psi) 5 – 120
Flow rate (gph) 0.17 – 530
Inlet/outled id (inches) 3/4″ – 4″

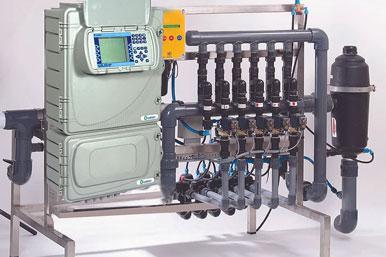

Green JET is a fully configurable, cost-effective fertilizer/acid dosing unit system that precisely and accurately injects fertilizers according to field/plant requirements. Requiring minimal capital investment and operating in any site conditions, Green JET optimizes the main irrigation lines’ available water flow rate and pressure to ensure maximum efficiency. Green-Jet Fertilizer injectors perform real-time monitoring and control while providing the best possible plant nutrition under any growing conditions. These units deliver the most accurate fertigation possible by: Controlling the amount of fertilizer relative to the amount of water; Simultaneously measuring and adjusting the EC PH values to the exact level the plant requires for optimal growth; and more.
